CEL-5110B ISDBT/DVBT编调一体机

CEL-5110B ISDBT/DVBT encoder modulator


General Description:

CEL-5110B HD/SD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into ISDBT/DVB-T RF out.

The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by ISDBT/DVB-T TV sets or STBs etc.

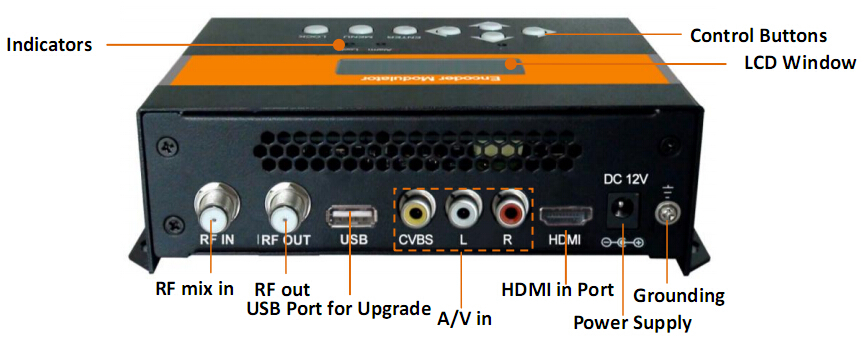

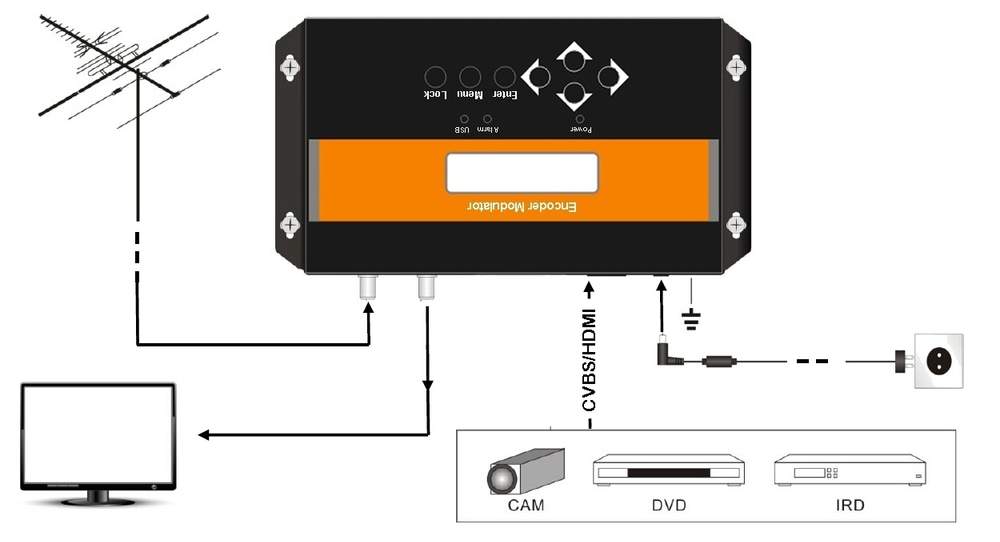

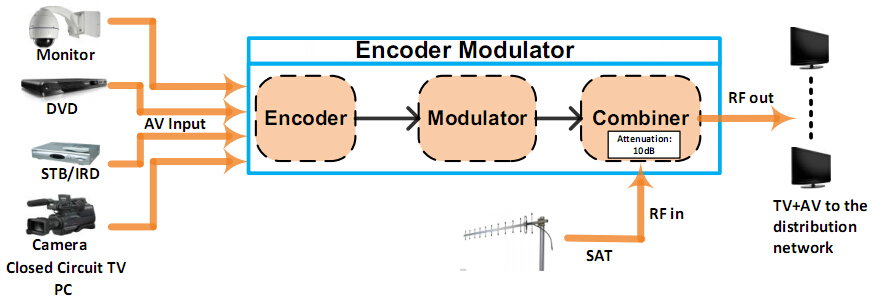

System Connection:


Technical Specifications:

HDMI Encoding Section
Video Encoding H.264 MP-L 3.0/3.1/4.0
Interface HDMI*1
  Input Output
Resolution 480-59.94/60p 480-60p
480-59.94/60i 480-30p
576-50i 576-25p
720-50/59.94/60p 720-50/59.94/60p
1080-50i 1080-25p
1080-59.94/60i 1080-30p
1080-59.94/60p 1080-30p
Aspect Ratio 16:9, 4:3
Bit rate 1.000~18.000 Mbps
Audio Encoding MPEGI layer 2
Sample rate 48KHz
  Bit rate 64, 96,128, 192, 256, 320kbps
CVBS Encoding Section
Video Encoding H.264 MP-L 3.0
Interface CVBS*1 (RCA)
Resolution Input Output
480-60p 480-60p
480-60i 480-30p
576-50p 576-50p
  576-50i 576-25p
Aspect Ratio 4:03
Bit rate 1.000~18.000 Mbps
Audio Encoding MPEGI layer 2
Interface Analog Stereo/Mono (Unbalanced RCA)
Sample rate 48KHz
Bit rate 64, 96,128, 192, 256, 320kbps
ISDB-T Modulator Section
Standard ARIB STD-B31
Bandwidth 6M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
MER ≥30dB
RF frequency 150~950MHz, 0.1MHz step
RF output level -47~ 0 dBm (60~107 dbµV), 1db step
DVB-T Modulator Section
Standard  DVB-T COFDM
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 8K
MER ≥31dB
RF frequency  150~950 MHz,0. 1KHz step
RF output level -47~ 0 dBm (60~107 dbµV), 1db step
System
RF mix in ATT 10 dB
Management Local LCD + control buttons
Language  English
Upgrade USB
General
Power supply DC 12V
Dimensions 183*110*50mm
Weight  < 1kg
